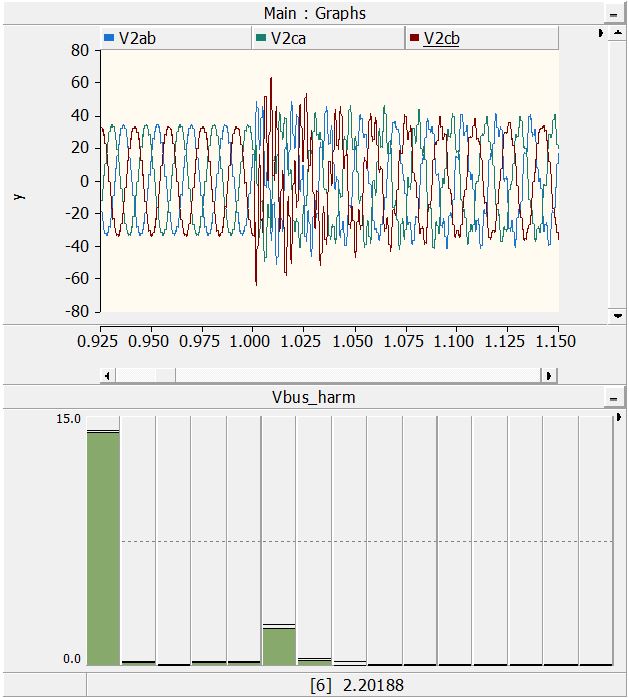

Harmonic Voltage Distortion
The objectives of this example are:
• Using the network harmonic impedance component
• Identifying network resonances
• Harmonic voltage amplification due to non-linear loads.
