Vacuum Circuit Breaker Reignition
Last Update: February 20, 2022

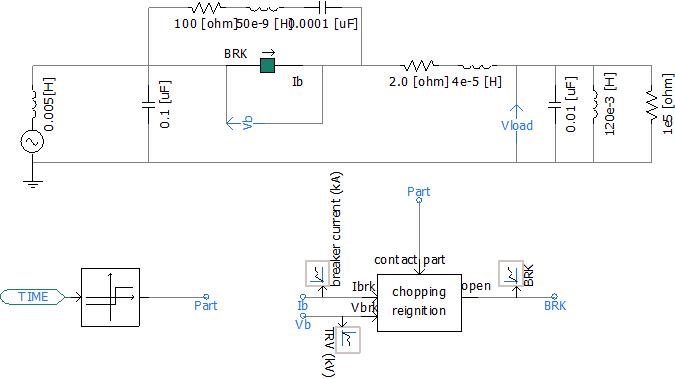

This single phase circuit is used to test current chopping and reignition of vacuum circuit breaker. The circuit is representing a transformer that is switched off by the vacuum breaker.The supply side connected to the vacuum breaker is represented by the Ln and Cn of the busbar and cable connection together. Ln=5 mH, Cn=100 nF.
