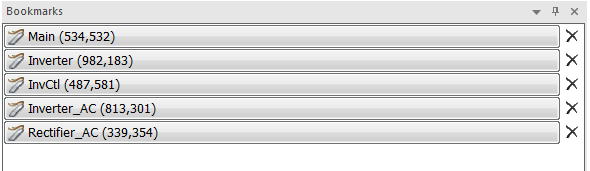

The purpose of the bookmarks pane is for the organization and management of bookmarks in any particular project. If a project does indeed have bookmarks added within it, they will all be listed in the this pane.
The bookmarks pane can be viewed by simply selecting it in the Panes drop list button, under the View tab of the ribbon control bar.
Once selected, dock the pane in a preferred location in the application environment.
To navigate to any bookmark, simply click it. You will immediately be brought to the bookmark location. The exact bookmark position will be shown by the following graphic:
To delete a bookmark, left-click the X button beside the bookmark in the pane:

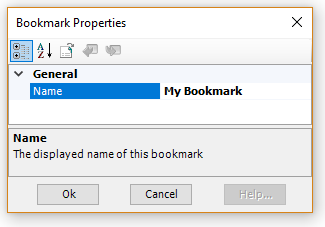

To change the name of a bookmark, right-click on it in the bookmarks pane and select Properties. Change the name in the field provided:
|
|
Editing Bookmark Properties |
Bookmark Properties Dialog |
You may also add bookmark links components anywhere on the schematic canvas. See Bookmark Links for more details.
