Adding Bookmark Link Components
To add a bookmark to a project, right-click on the exact spot of a blank part of a schematic canvas and select Add Bookmark.

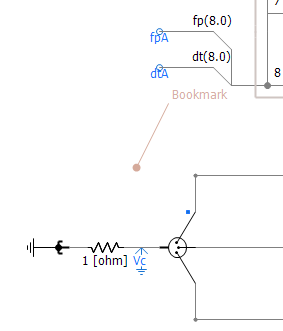

Once the bookmark has been added, a navigable link to the bookmark will appear in the Bookmarks Pane. Clicking on a bookmark link in the pane, will navigate you back to the exact spot where the bookmark was placed. A graphic will be displayed upon arrival, showing the exact point of the bookmark:
Once a bookmark has been added, it will appear in both the bookmarks pane, and as part of a drop list in the Bookmarks button (located under the Components tab of the ribbon control bar).
|
|

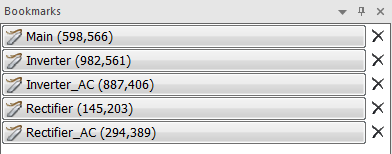

Bookmarks Pane |
Bookmarks Button Droplist |

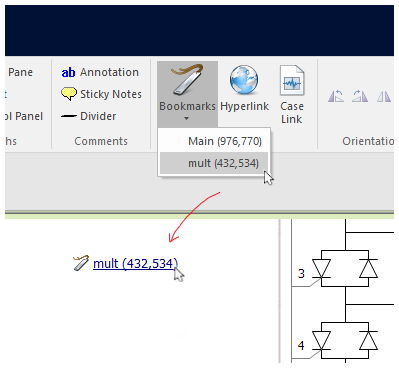

To add a link to a bookmark, click the Bookmarks button (located under the Components tab of the ribbon control bar) and select a bookmark from the list. A bookmark link component will attach to your mouse. Place the bookmark on a schematic canvas anywhere within the project. To navigate to the bookmark, simply double-click the bookmark link.
|
|
Place the Bookmark Component |
Navigate to the Bookmark (Double-Click the Component) |
