The output of this component is used specifically for controlling the fault state and duration of fault.

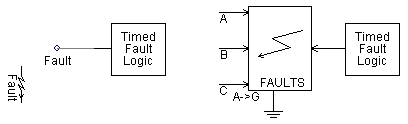

The Timed Fault Logic component may be linked to a Single-Phase Fault or Three-Phase Fault as follows:
More: |
Name for Identification |
Text |
Optional text parameter for identification of the component. |
||
Time to Apply Fault |
|
REAL |
Variable |
Enter the time at which to apply the fault [s] |
|
|
|
|
|
Duration of Fault |
|
REAL |
Variable |
Enter the duration of the fault [s] |
