Adding/Modifying Global Substitutions
Utilizing Global Substitutions
Associating Global Substitutions with a Simulation Set
Global substitutions provide a means to substitute predefined, constant values globally throughout a project or in the context of a simulation set task. A global value can be substituted at any level within a project module hierarchy, and is done so by substituting directly within component input parameters. Once a global substitution is defined, it's name can be inserted into any component input parameter; its value will be substituted by the PSCAD compiler when the project is built.
The syntax for using a global substitution is as follows:
$(<Name>)
The substitution contains an item <Name>, where:
<Name>: Global substitution name.
Component input parameters containing global substitutions will be preprocessed before their value is used within the component code (or canvas, if a module). To the component, the input parameter appears exactly as if the user entered the data directly.
To view any global substitutions that are already defined for a particular project, simply invoke the Global Substitutions pane. This can be accomplished by one of the following methods:
Press Ctrl + Shift + g on your keyboard.
Click the View tab in the ribbon control bar, select the Panes drop-menu and select Global Substitutions.
The global substitutions pane:

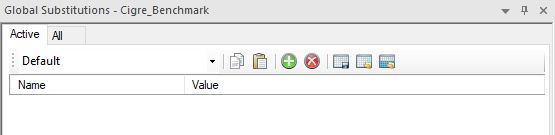

Before adding or modifying a global substitution, first invoke the Global Substitutions pane by one of the methods outlined in Viewing above.
To add a new global substitution, click the Add New Global Substitution button, or right-click on the pane and select New.
|
|
Add New Global Substitution Button |
Context Menu |

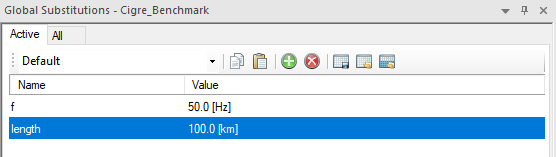

A new row will appear on the table, including a Name and a Value cell. Double-click on either to enter the global substitution name and value. For example, say two substitutions that represent system frequency and transmission line length (called f and length) need to be added, with values 50 Hz, and 100 km respectively:
Note: The value is treated as a string, which must conform to the parameter input formatting rules— the same rules that apply if you were to enter the value directly. This includes using the brackets '[]' to enclose the unit.
To utilize these substitutions, enter either of the keys in the appropriate component input parameter field, according to the syntax given above:
|

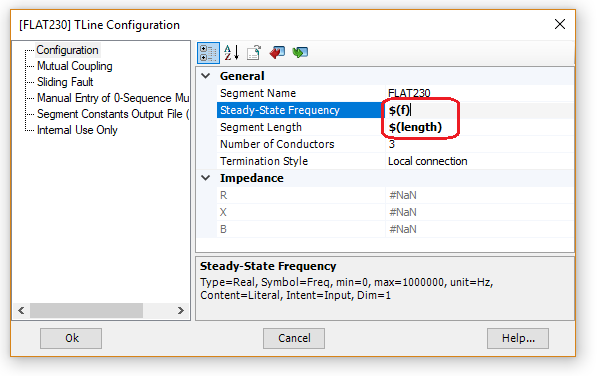

Entering f and length in Transmission Line Configuration Dialog |
New to PSCAD V5, global substitutions are no longer limited to being confined for singular use within the context of a project, but may also be associated to a particular simulation set. To do so, click the All button in the global substitutions pane.

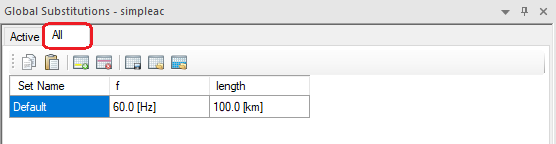

By default, a single substitution set of values (or substitution set) will appear, based on the list of global substitutions under the Active tab. Substitution sets are associated to a simulation set via the Set Name field: All that is required is that this name match the name of the simulation set.
