The Additional Options components provides some miscellaneous options the manipulation of output display. That is, none of these options affect the properties of the transmission line or cable system. This component is completely optional, as all parameters set within it will assume the default quantities if the component is not included.
A convenient feature included within this component is the ability to automatically create an equivalent PI Section of any overhead line or underground cable system. Simply include this component and enable the feature. The next time the line is solved, a Component Definition (*.cmp) file is created and placed in the Project Temporary Directory (will be named after line name). The Definition may then be imported into any Library or Case Project.
Note that the component created is a purely passive RLC representation of the transmission system, based on the Steady-State Frequency and Segment Length input parameters set in the Overhead Line Configuration or Cable Configuration components.
|
More: |
NOTE: These settings affect the display of data in the Line Constants Output file only. None of these parameters affect the line properties whatsoever.
|

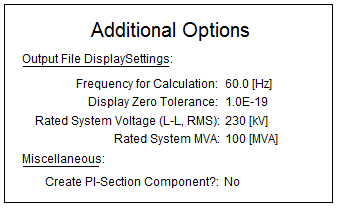

Frequency for Calculation |
|
REAL |
Literal |
Enter the steady-state frequency for calculation of the output file data [Hz] |
|
|
|
|
|
|
|
Default Zero Tolerance for Display |
|
REAL |
Literal |
Enter a value, below which all display data will be set to exactly 0.0. This can help in making the output data easier to read. |
|
|
|
|
|
|
|
Rated System Voltage (L-L, RMS) |
|
REAL |
Literal |
Enter the system base voltage for calculation of per-unit values in the Load Flow RXB Formatted Data section of the output file. |
|
|
|
|
|
|
|
Rated System MVA |
|
REAL |
Literal |
Enter the system base MVA for calculation of per-unit values in the Load Flow RXB Formatted Data section of the output file. |
|
|
|
|
|
|
|
Create Equivalent PI-Section? |
Choice |
Select No or Yes. |
||
|
|
|
|
|
|
|
Include Shunt R when Values Less Than: |
REAL |
Literal |
Enter a value for inclusion of shunt resistance elements in the PI Section. If any of the equivalent shunt resistances are greater than this number, they will not be included when the equivalent PI Section component is built. |
