Mutually Coupled Wires (Three Lines)



Description

This component models three wires (conductors) that are mutually coupled.  It can also be used as a zero impedance transmission line. The data required are the resistances, the self-inductances and the mutual inductance between the conductors.

NOTE:  The values entered for inductances and resistances must be realistic to ensure an error free simulation!

Input Parameters

ConfigurationConfiguration



 Name for Identification



Text



Optional text parameter for identification of the component.



  Graphics Display



Choice

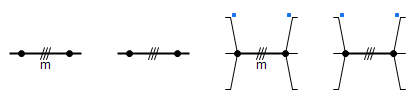

Select 3 phase view, or single line view.











Resistance/

Inductance Values



Choice



Select as individual components, as sequence components, or all zero.



Select Individual Components if the inductance and resistance values are to be entered directly.  Select Sequence Components if the inductance and resistance values are to be entered as positive-sequence and zero-sequence value. Select All Zero to model a zero impedance transmission line.











Enter Data in Real or PU Values



Choice



Select Real, or PU.



The option determines if the data for RL or sequence properties are entered as actual or per-unit values. If PU, the base quantities must be specified.











Base Voltage



Real

Constant

Base voltage for the conversion of per-unit values to actual values [kV].



Enabled only if Enter Data in Real or PU Values | PU is selected.











Base MVA



Real

Constant

Base MVA for the conversion of per-unit values to actual values [MVA].



Enabled only if Enter Data in Real or PU Values | PU is selected.











Base Frequency



Real

Constant

Base frequency for the conversion of per-unit values to actual values [Hz].



Enabled only if Enter Data in Real or PU Values | PU is selected.



Individual ComponentsIndividual Components

NOTE:  These parameters are enabled only if Enter Resistance/Inductance Values As is set to Individual Components.



 Resistance (X)



REAL

Constant

Enter the resistance of conductor X [W]











Self Inductance (X)



REAL

Constant

Enter the self inductance of conductor X [H]











Mutual Inductance (X-Y)



REAL

Constant

Enter the mutual inductance between conductors X and Y [H]



Sequence ComponentsSequence Components

NOTE:  These parameters are enabled only if Enter Resistance/Inductance Values As is set to Sequence Components.



 Positive Sequence Resistance



REAL

Constant

Enter the positive sequence resistance [W]











Positive Sequence Inductance



REAL

Constant

Enter the positive sequence inductance [H]











 Zero Sequence Resistance



REAL

Constant

Enter the zero sequence resistance [W]











Zero Sequence Inductance



REAL

Constant

Enter the zero sequence inductance [H]
