This component is used to create a constant, REAL control signal. It is similar to the Real Constant, but provides predefined, common constants.

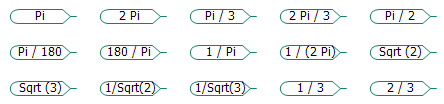

The following is a list of constants available in this component:
p = 3.141592653589793
2p = 6.283185307179586
p /3 = 1.047197551196598
2p /3 = 2.094395102393195
p /2 = 1.570796326794896
p /180 = 0.017453292519943
180/p = 57.29577951308232
1/p = 0.318309886183791
1/2p = 0.159154943091895
= 1.414213562373095
= 1.732050807568877
=
0.707106781186548
=
0.577350269189626
1/3 = 0.333333333333333
2/3 = 0.666666666666667
Label for the Constant |
|
Text |
|
Optional descriptive text describing the constant (optional). This text will be displayed beside the component graphic. |
|
|
|
|
|
Real Constant Value |
|
Choice |
|
Select Pi, 2 Pi, Pi/3, 2 Pi/3, Pi/2, Pi/180, 180/Pi, 1/Pi, 1/(2 Pi), Sqrt(2), Sqrt(3), 1/Sqrt(2) or 1/Sqrt(3), 1/3 or 2/3. |
|
|
|
|
|
Output Dimension |
|
INTEGER |
Literal |
Enter the dimension of the signal. Enter 1 for a scalar. |
