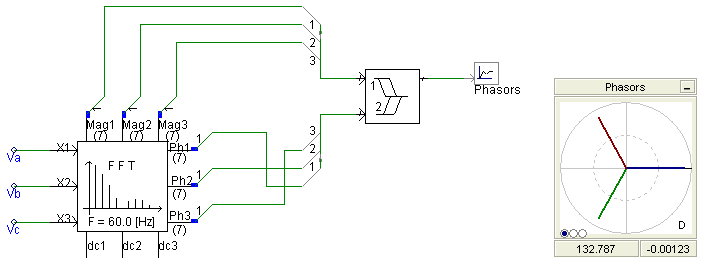

This component interlaces two signal vectors (arrays) into a combined output array. This component is especially useful for combining an array of polar magnitudes with an array of polar phase angles, so that they are formatted for direct input to a PhasorMeter. For example, consider the following where output from the On-Line Frequency Scanner (FFT) is formatted for display:
More: |
Name for Identification |
Text |
Optional text parameter for identification of the component. |
||
Output Dimension |
|
INTEGER |
Literal |
Indicate the output dimension (can be up to a maximum of the combined dimensions of the inputs). |
