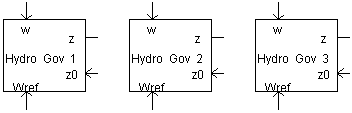

This component can represent one of three IEEE type hydro governor models:
GOV1: Mechanical-Hydraulic Controls
GOV2: PID Controls including Pilot and Servo Dynamics
GOV3: Enhanced Controls for Load Rejection Studies
The inputs to this component are per-unit speed w, per-unit speed reference Wref and gate position during initialization z0. The output is the gate position z.
More: |
Name for Identification |
Text |
Optional text parameter for identification of the component. |
||
Hydro Governor Model |
|
Choice |
|
Select GOV1, GOV2 or GOV3 as described in Hydro Governor Transfer Functions |
|
|
|
|
|
Gov/Turb Status => 0-Initialize; 1-Normal |
|
INTEGER |
Variable |
A variable name can be used. This variable can come from Output Variables for Controller Initialization section of the Synchronous Machine input parameters |
NOTE: See Hydro Governor Transfer Functions for more details.
Dead Band Value |
|
REAL |
Constant |
If the speed difference is less than the dead band value, then the 'error' input to the governor will be zero [pu] |
|
|
|
|
|
Permanent Droop (Rp) |
|
REAL |
Constant |
Enter a value for permanent droop compensation factor [pu] |
|
|
|
|
|
Maximum Gate Position (Gmax) |
|
REAL |
Constant |
Enter a value for the maximum gate position [pu] |
|
|
|
|
|
Minimum Gate Position (Gmin) |
|
REAL |
Constant |
Enter a value for the minimum gate position [pu] |
|
|
|
|
|
Max. Gate Opening Rate (MXGTOR) |
|
REAL |
Constant |
Enter a value for the maximum gate-opening rate [pu/s] |
|
|
|
|
|
Max. Gate Closing Rate (MXGTCR) |
|
REAL |
Constant |
Enter a value for the maximum gate-closing rate [pu/s] |
Gov1: Mechanical-Hydraulic Governor
NOTE: See Hydro Governor Transfer Functions for more details.
Pilot Valve & Servomotor Time Constant (Tp) |
|
REAL |
Constant |
Enter a value for pilot valve and servomotor time constant [s] |
|
|
|
|
|
Servo Gain (Q) |
|
REAL |
Constant |
Enter a value for servo gain [pu] |
|
|
|
|
|
Main Servo Time Constant (Tg) |
|
REAL |
Constant |
Enter a value for main servo time constant [s] |
|
|
|
|
|
Temporary Droop (Rt) |
|
REAL |
Constant |
Enter a value for permanent droop compensation factor [pu] |
|
|
|
|
|
Reset or Dashpot Time Constant (TR) |
|
REAL |
Constant |
Enter a value for reset or dashpot time constant [s] |
Gov2: Electro-Hydraulic (Pid) Governor
NOTE: See Hydro Governor Transfer Functions for more details.
Proportional Gain (Kp) |
|
REAL |
Constant |
Enter a value for proportional gain [pu] |
|
|
|
|
|
Integral Gain (Ki) |
|
REAL |
Constant |
Enter a value for integral gain [pu] |
|
|
|
|
|
Derivative Gain (Kd) |
|
REAL |
Constant |
Enter a value for derivative gain [pu] |
|
|
|
|
|
Pilot Servomotor Time Constant (TA) |
|
REAL |
Constant |
Enter a value for pilot servo motor time constant [s] |
|
|
|
|
|
Gate Servo Time Constant (TC) |
|
REAL |
Constant |
Enter a value for gate servo time constant [s] |
|
|
|
|
|
Gate Servomotor Time Constant (TD) |
|
REAL |
Constant |
Enter a value for gate servo motor time constant [s] |
NOTE: See Hydro Governor Transfer Functions for more details.
Is Jet Deflector in Operation? |
|
Choice |
|
Select Yes or No |
|
|
|
|
|
Is Relief Valve in Operation? |
|
Choice |
|
Select Yes or No |
|
|
|
|
|
Pilot Valve Time Constant (Tp) |
|
REAL |
Constant |
Enter a value for pilot valve time constant [s] |
|
|
|
|
|
Reset or Dashpot Time Constant (TR) |
|
REAL |
Constant |
Enter a value for reset or dashpot time constant [s] |
|
|
|
|
|
Temporary Droop (Rt) |
|
REAL |
Constant |
Enter a value for permanent droop compensation factor [pu] |
|
|
|
|
|
Main Servo Time Constant (Tg) |
|
REAL |
Constant |
Enter a value for main servo time constant [s] |
NOTE: See Hydro Governor Transfer Functions for more details.
Max. Deflector Opening Rate (MXJDOR) |
|
REAL |
Constant |
Enter a value for the maximum deflector-opening rate [pu/s] |
|
|
|
|
|
Max. Deflector Closing Rate (MXJDCR) |
|
REAL |
Constant |
Enter a value for the maximum deflector-closing rate [pu/s] |
|
|
|
|
|
Gate Buffer Cut-in Value (Z_CUT) |
|
REAL |
Constant |
If the gate position is less than this value and if the deflector is in operation, the buffered gate opening/closing rates come into operation [pu] |
|
|
|
|
|
Max Buffer Opening Rate (MXBGOR) |
|
REAL |
Constant |
Enter a value for the maximum buffer-opening rate [pu/s] |
|
|
|
|
|
Max Buffer Closing Rate (MXBGCR) |
|
REAL |
Constant |
Enter a value for the maximum buffer-closing rate [pu/s] |
NOTE: See Hydro Governor Transfer Functions for more details.
Relief Valve Closing Rate (RVLVCR) |
|
REAL |
Constant |
Enter a value for the relief valve-closing rate [pu/s] |
|
|
|
|
|
Max. Relief Valve Position (RVLMAX) |
|
REAL |
Constant |
Enter a value for the relief valve position [pu] |
