MMC Carrier Signal Generator

 Name

Text

Optional text parameter for identification of the component.

Track Fundamental Frequency?

Choice

Select Yes or No.

If Yes is selected, the input signal will be the corresponding phase angle [0, 2π] or [0, 360°], depending on the choice of Angle input Mode.

Angle Input Mode

Choice

Select Radians or Degrees.

Unit of the input-phase angle.

Number of Carriers

INTEGER

Literal

Number of carrier signals to be generated.

Carrier Frequency as Multiple of Fundamental

REAL

Variable

The frequency of carrier signals will be the fundamental frequency multiplied by this number.

Type of Carrier

Choice

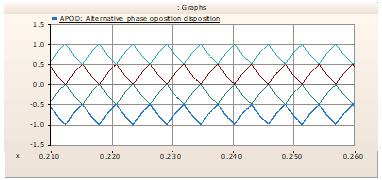

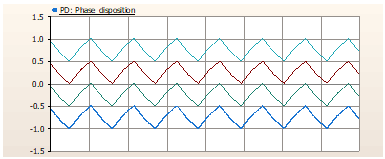

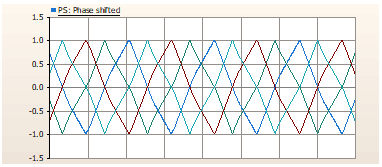

Select the carrier signal output type PD: Phase disposition, APOD: Alternative phase opposition disposition, or PS: Phase shifted.

Maximum

REAL

Literal

Maximum value of the carrier signals.

Minimum

REAL

Literal

Minimum value of the carrier signals.

Initial Phase Shift [deg]

REAL

Constant

Initial phase shift in degrees only if the Track Fundamental Frequency has been set to No.

Fundamental Frequency

REAL

Constant

Fundamental frequency only if the Track Fundamental Frequency has been chosen as No.
