This component performs Clarke or Inverse Clarke transformation. The user has the option of choosing standard Clarke quantities or the Power Invariant quantities.

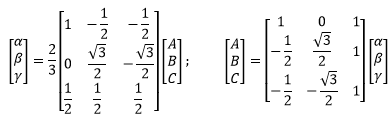

Standard transformation and inverse transformation:

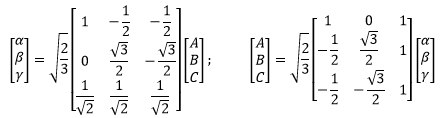

Power Invariant transformation and inverse transformation:
Name |
Text |
|
Enter a descriptive name (optional). |
|
|
|
|
|
|
Direction of Transformation |
Choice |
|
Select ABC to Alpha-Beta or Alpha-Beta to ABC. |
|
|
|
|
|
|
Clarke Quantities |
Choice |
|
Select Standard or Power Invariant. |
