How to Determine Required Visual C++ Redistributables for a Given DLL

If you have been provided a dll, and are unsure which Visual C++ Redistributables are required, the following are some methods to determine this:

  1. Ask the DLL provider

  2. Use the Depends Dependency Walker utility (see instructions below)

  3. Send the DLL to the MHI support desk (, to see if we can determine this. Ensure to provide your PSCAD license number in your request (may be determined as per this article).

Using the Depends Dependency Walker utility

  • Launch ..\Depends_32\depends.exe

  • Select View | Full paths so that Full paths is enabled (checked)

  • Drag the DLL into the Dependency Walker application, and it will look something like this:

  • Look for files similar to format: MFCxxx.dll, VCRUNTIMExxx.dll, then use our compatibilities chart to determine the version.

For example, in the above screenshot, the following versions have been determined:

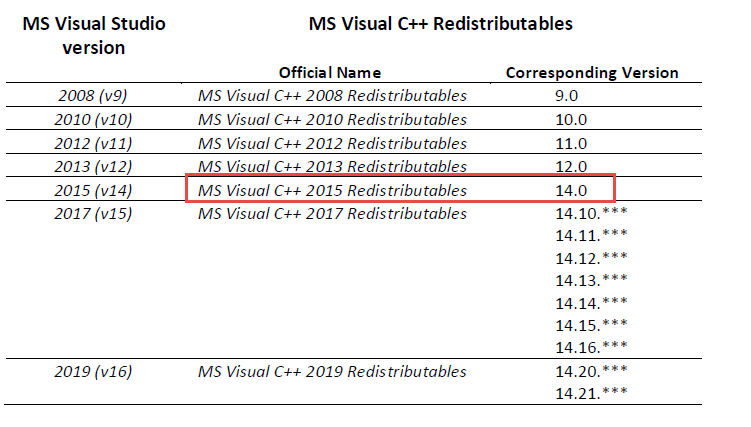

  • According to Chart 1.d of this manual, version “140” corresponds to Visual C++ 2015 Redistributables:
