Three-Phase Battery System - A Generic Example

Last date verified: June 7, 2018

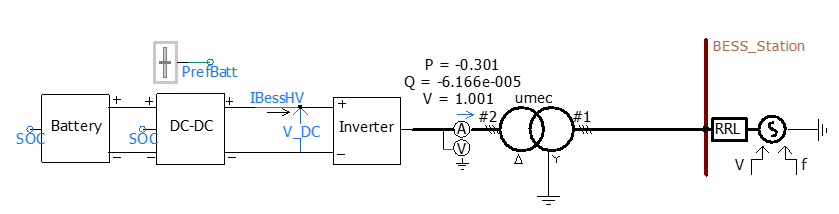

This example outlines a three-phase battery energy storage (BESS) system. A general description of the functionality of the controllers and the battery system are provided and simulation results are discussed.

The battery system is able to:

  • charge/ discharge the battery, and
  • inject reactive power during faults
